TRICLIP™
TRICUSPID
VALVE REPAIR
TRANSCATHETER
EDGE-TO-EDGE REPAIR (TEER)



Built upon a proven clip-based platform, TriClip™ Transcatheter Edge-to-Edge Repair (TEER) offers a minimally invasive treatment option for patients with symptomatic, severe Tricuspid Regurgitation (TR) who are at high risk for surgery.

THE TRICUSPID VALVE HAS FINALLY
MET ITS MATCH

TRICLIP™ G4 TEER SYSTEM.
UNMATCHED STABILITY, PRECISION, CONTROL.2

The TriClip™ G4 Transcatheter Edge-to-Edge Repair System empowers you with stable navigation and precise delivery for complex conditions.

* Based on Abbott simulated horizontal tensile testing.

TRICLIP™ eLABELLING SITE

F/E Knob

S/L Knob

Steerable Guide Catheter

+/- Knob

Distal Curve

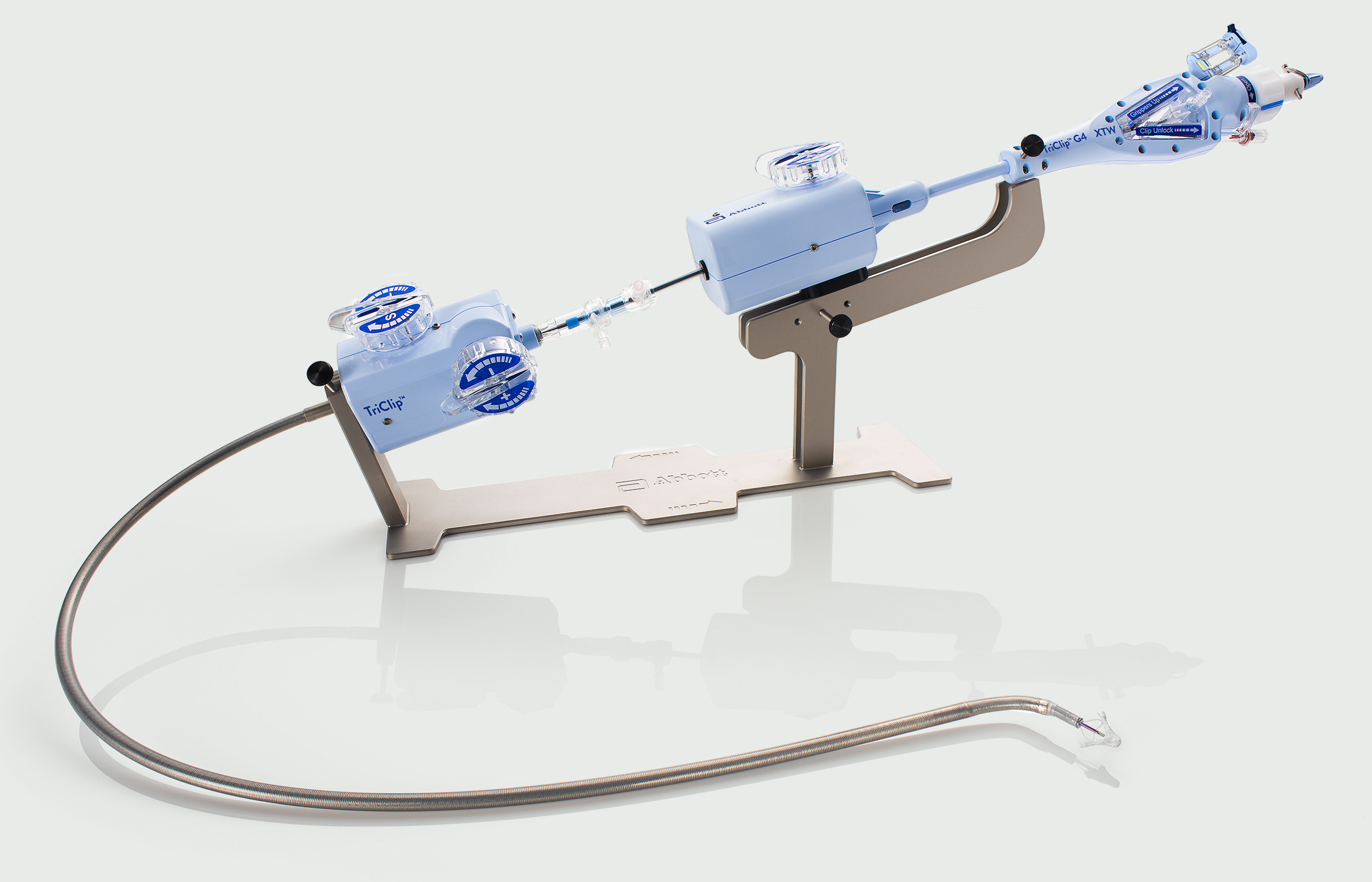

TriclipTM G4 Delivery System

Controlled Gripper Actuation

Actuator Knob

  • Flexes and extends delivery catheter to steer down to the valve plane

  • Enables movement in septal or lateral direction

  • Designed for the tricuspid anatomy
    • Provides adequate height over the valve
    • Maintains coaxial position during steering and positioning
    • Allows sweeping away from the septum to optimize delivery catheter while maintaining perpendicularity to the plane of the valve

  • Straightens or curves the guide to add or subtract height above the valve

  • Designed for direct access to the tricuspid valve

    • Provides stability and precision during steering and positioning
    • Multiaxis steering to enable navigation across all lines of coaptation

  • Confirm and optimize leaflet grasping

  • Simultaneous implant and gripper detachment

EPIC™ SUPRA AORTIC STENTED TISSUE VALVE FEATURES
1
2
3
4
5
6
7
8
    • Provides stability and precision during steering and positioning
    • Multiaxis steering to enable navigation across all lines of coaptation
  2. Flexes and extends delivery catheter to steer down to the valve plane
  3. Enables movement in septal or lateral direction
  4. Straightens and curves guide for height adjustment above the valve

  5. Designed for the tricuspid anatomy

    • Provides adequate height over the valve
    • Maintains coaxial position during steering and positioning
    • Allows sweeping away from the septum to optimize delivery catheter while maintaining perpendicularity to the plane of the valve
  6. Designed for direct access to the tricuspid valve
  7. Confirm and optimize leaflet grasping
  8. Simultaneous implant and gripper detachment
Building on a legacy of unmatched TEER expertise1

TriClip™ implants use the same proven leaflet technology as our MitraClip™ Transcatheter Edge-to-Edge Repair (TEER). TriClip™ TEER is the clip-based technology physicians know and trust, with a delivery system uniquely designed for the tricuspid valve.

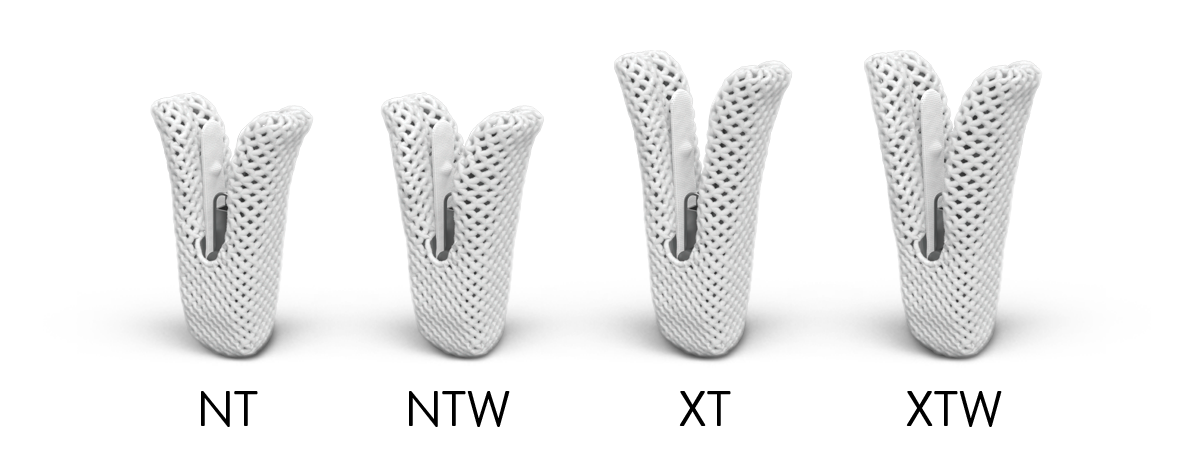

TriClip™ Implant Features:

  • Cobalt-chromium and Nitinol construction
  • Polyester cover designed to promote tissue growth
  • Magnetic resonance conditional to 3 Tesla†

†Static magnetic field up to 3 T; maximum spatial gradient in static field of 4000 gauss/cm or less; maximum whole-body averaged specific absorption rate (SAR) of 2 W/kg for 15 minutes of scanning

More options to confirm and optimize leaflet grasping with Controlled Gripper Actuation (CGA)1,**

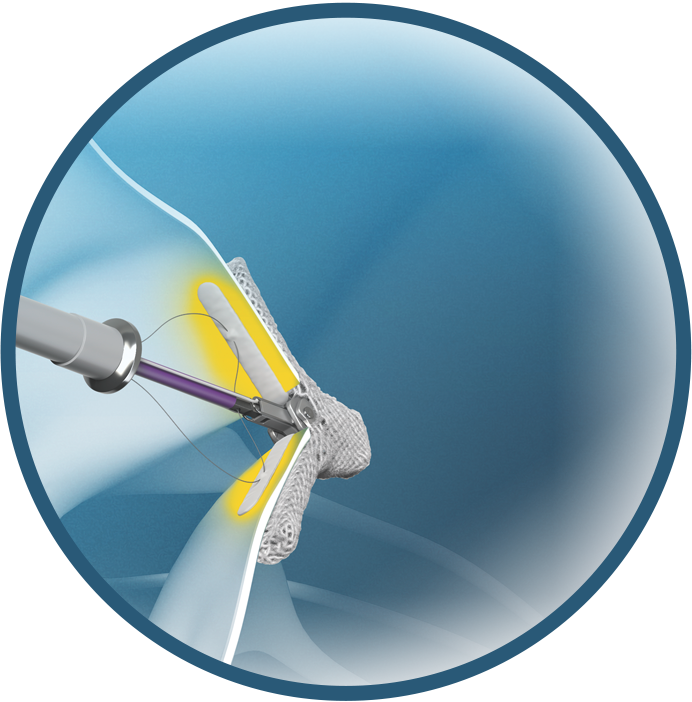

Optimized leaflet capture

OPTIMIZED LEAFLET CAPTURE FOR CONSISTENT TR REDUCTION WITH THE TRICLIP™ G4 TEER SYSTEM

  • Wide grasp opening allows full leaflet insertion1
  • Designed to distribute retention forces across the leaflets1
  • Controlled gripper actuation enables independent leaflet grasping and confirmation, when needed1
